Product Overview

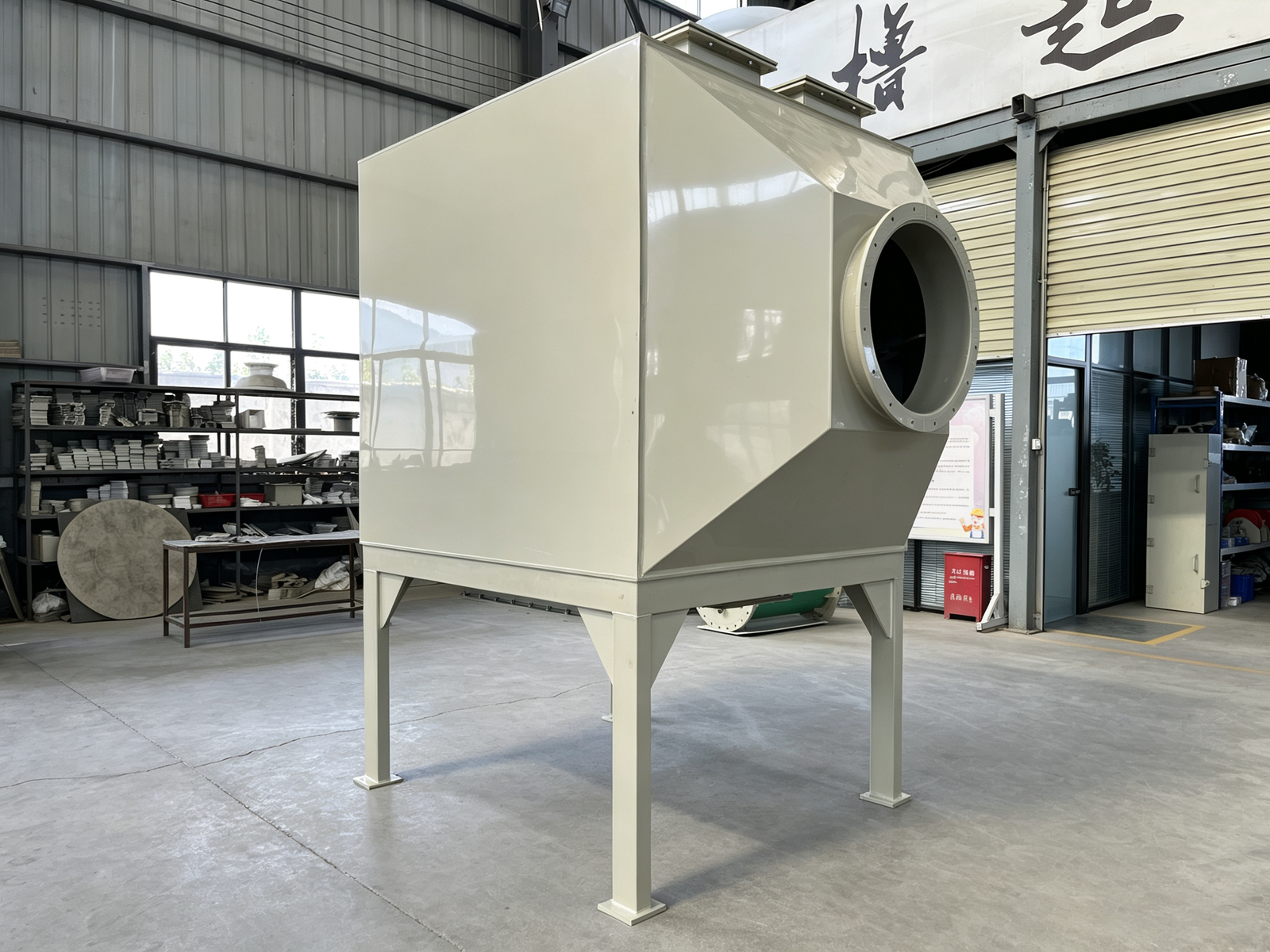

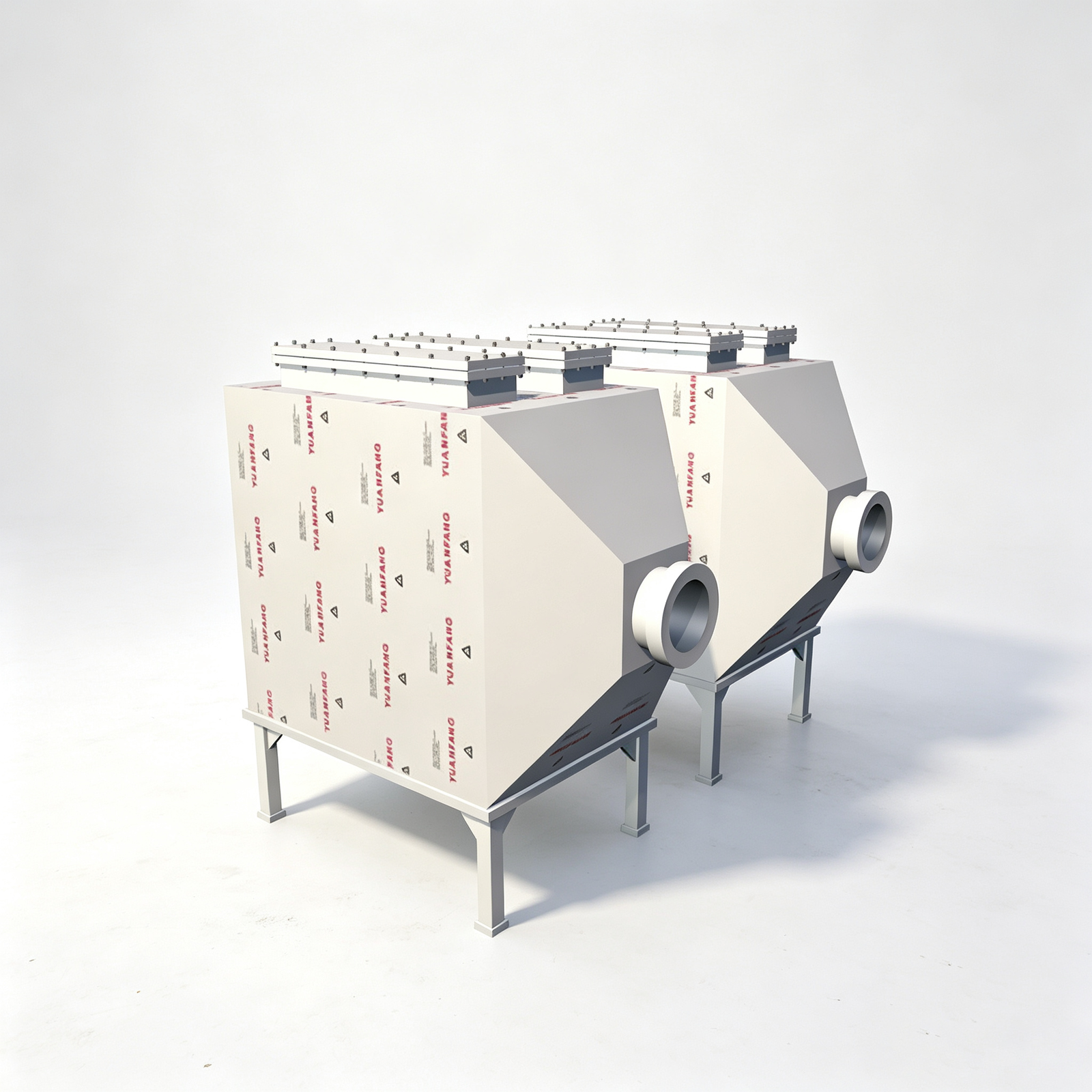

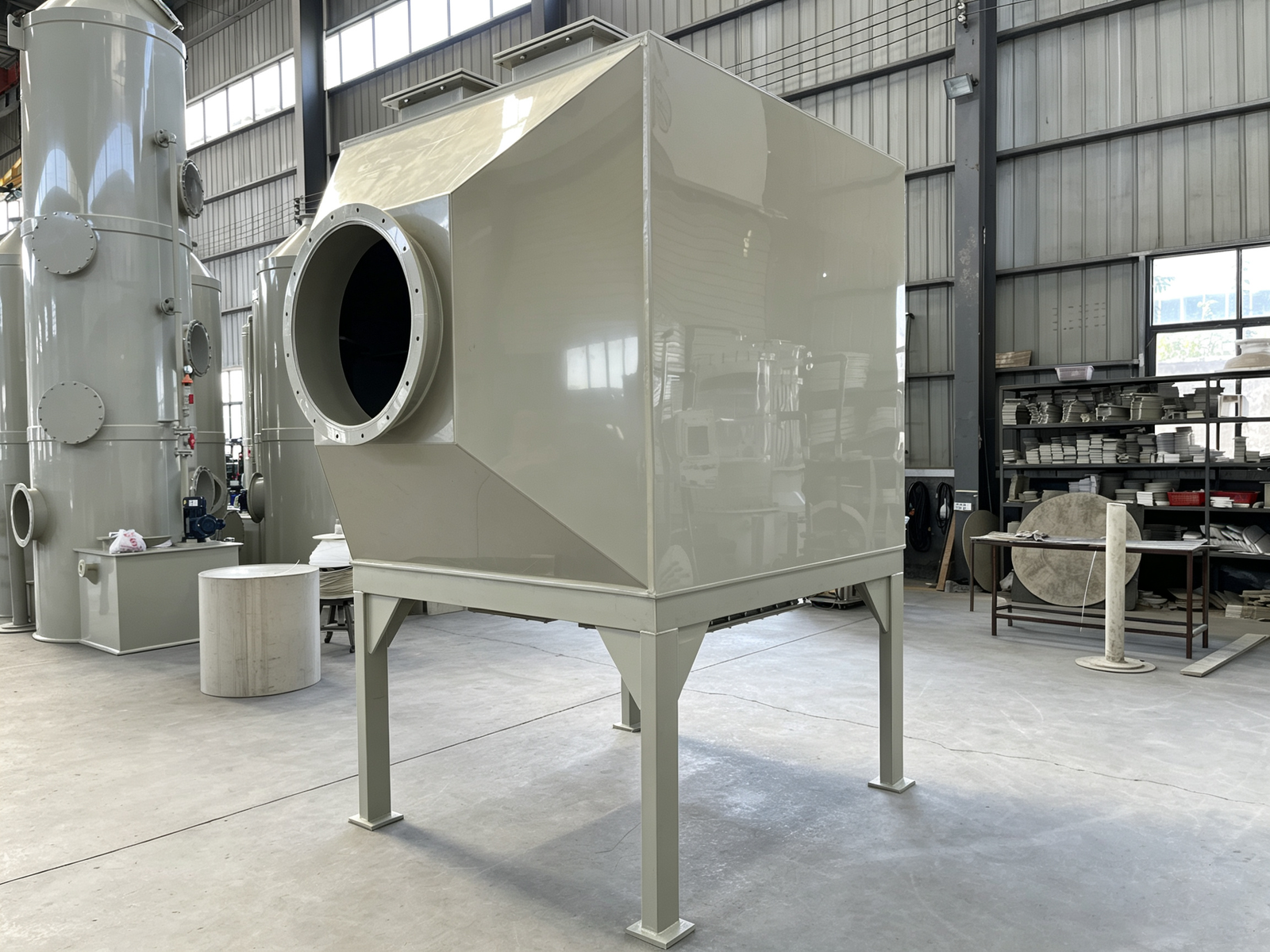

The top-feed bottom-discharge activated carbon adsorber is a vertical granular-activated-carbon (GAC) adsorption bed designed for continuous or semi-continuous industrial exhaust treatment. Unlike tray-based units that require a full stop for carbon replacement, this design feeds fresh carbon from the top and discharges spent carbon from the bottom, letting the bed remain in service while media is refreshed.
The shell is fabricated from corrosion-resistant PP or PPH to withstand acidic, alkaline, and humid gas streams. A large-diameter side inlet and top outlet (or reverse configuration per process requirement) distribute airflow evenly across the carbon bed, while the gravity-driven media movement ensures that the oldest, most saturated carbon is purged first.
Key Features
| Top-Feed Bottom-Discharge Design | Fresh carbon is added from the top; saturated carbon is discharged from the bottom. Enables online or short-downtime media replenishment. |
| High Carbon Utilization | Gravity-driven downward media movement pushes the most saturated carbon out first, reducing unused adsorption capacity at the top of the bed. |
| Low Pressure Drop | Open vertical bed geometry and optimized gas distribution keep system resistance within a controlled range even at higher airflows. |
| PP / PPH Construction | Corrosion-resistant thermoplastic shell suitable for acid, alkali, and solvent-laden industrial exhaust. |
| Scalable Airflow | Suited to medium-to-large exhaust volumes where continuous operation and lower carbon handling labor are priorities. |
| Inspection & Sampling Ports | Multiple access points for carbon level monitoring, sampling, and internal inspection without full dismantling. |
Technical Specifications
| Body Material | PP / PPH (optional: SS304 / SS316L lining) |
| Bed Type | Vertical fixed / moving bed, granular activated carbon |
| Carbon Feed Method | Top feed, gravity-assisted |
| Carbon Discharge Method | Bottom discharge via slide gate / rotary valve |
| Airflow Capacity | [Customizable] Nm³/h (per unit, customizable) |
| Applicable Pollutants | VOCs, H₂S, NH₃, mercaptans, and other industrial odor compounds |
| Operating Temperature | ≤ [Customizable] °C |
| Pressure Drop | ≤ [Customizable] Pa (design dependent) |
| Carbon Type | Pelletized or granular activated carbon (coal/wood/coconut base per application) |
| Dimensions | Customized to site layout and airflow |
Working Principle
Contaminated exhaust enters the adsorber through the side inlet and flows horizontally or vertically through the granular activated carbon bed. Pollutant molecules are captured by physical adsorption on the large internal surface area of the carbon particles, and treated gas exits through the outlet.
Because the carbon bed moves slowly downward under gravity, the lowest layer — which has been exposed to the highest pollutant concentration for the longest time — reaches saturation first and is discharged from the bottom. Fresh or regenerated carbon is added from the top, maintaining a consistent adsorption front and minimizing the downtime associated with batch media replacement.
Applications
- Municipal wastewater treatment and pumping station odor control
- Chemical and pharmaceutical process vents
- Food processing, rendering, and fermentation exhaust
- Printing, adhesive curing, and solvent recovery vent lines
- Electronics and semiconductor exhaust pretreatment
- Refinery and petrochemical off-gas polishing
Why Choose Yuanfang EP?
Yuanfang Environmental Protection (YFEP) supplies industrial gas treatment equipment built to project-specific pollutant and airflow conditions. Our top-feed bottom-discharge activated carbon adsorbers are engineered with corrosion-resistant PP/PPH shells, even gas distribution, and accessible maintenance ports. From technical clarification and drawing approval to fabrication and commissioning support, we provide documented engineering and after-sales service for clients worldwide.
Payment, Delivery & After-Sales
Payment: T/T and L/C accepted; terms confirmed per contract.
Delivery: Manufactured to order; lead time quoted after technical clarification.
After-Sales: Installation guidance, commissioning support, and spare-part supply. Drawings and operation manuals provided with shipment.
