Product Overview

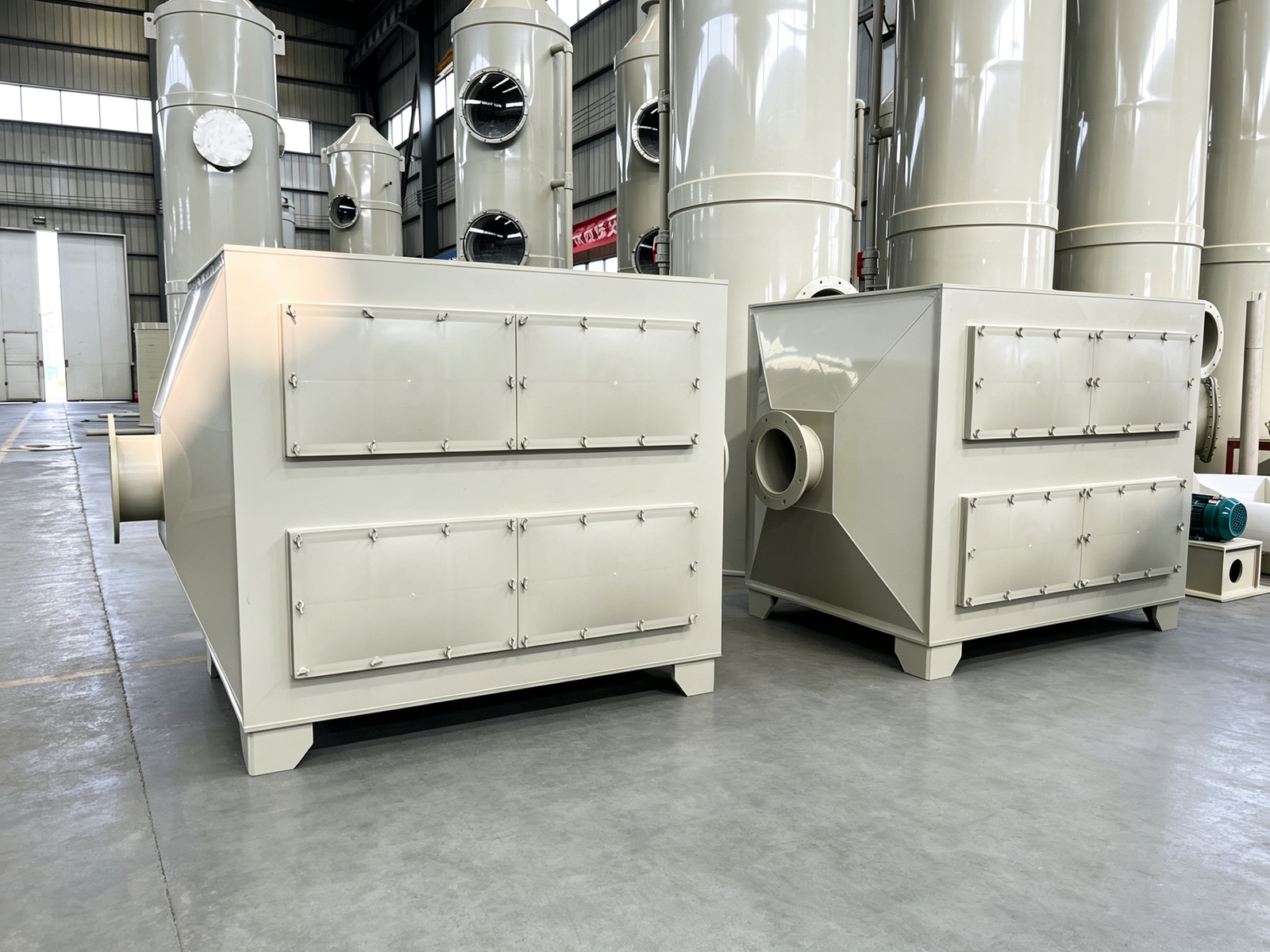

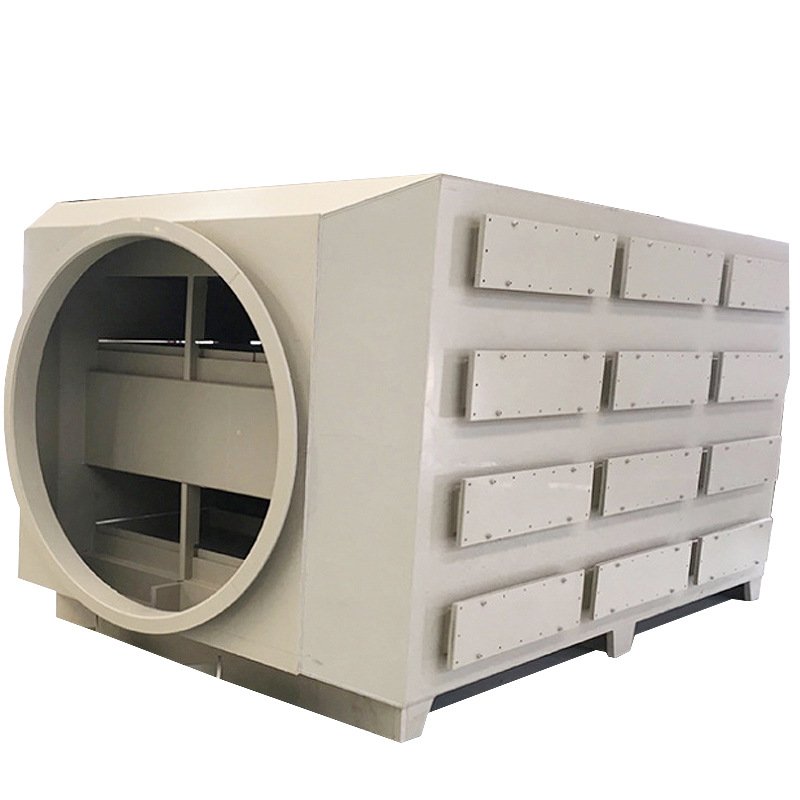

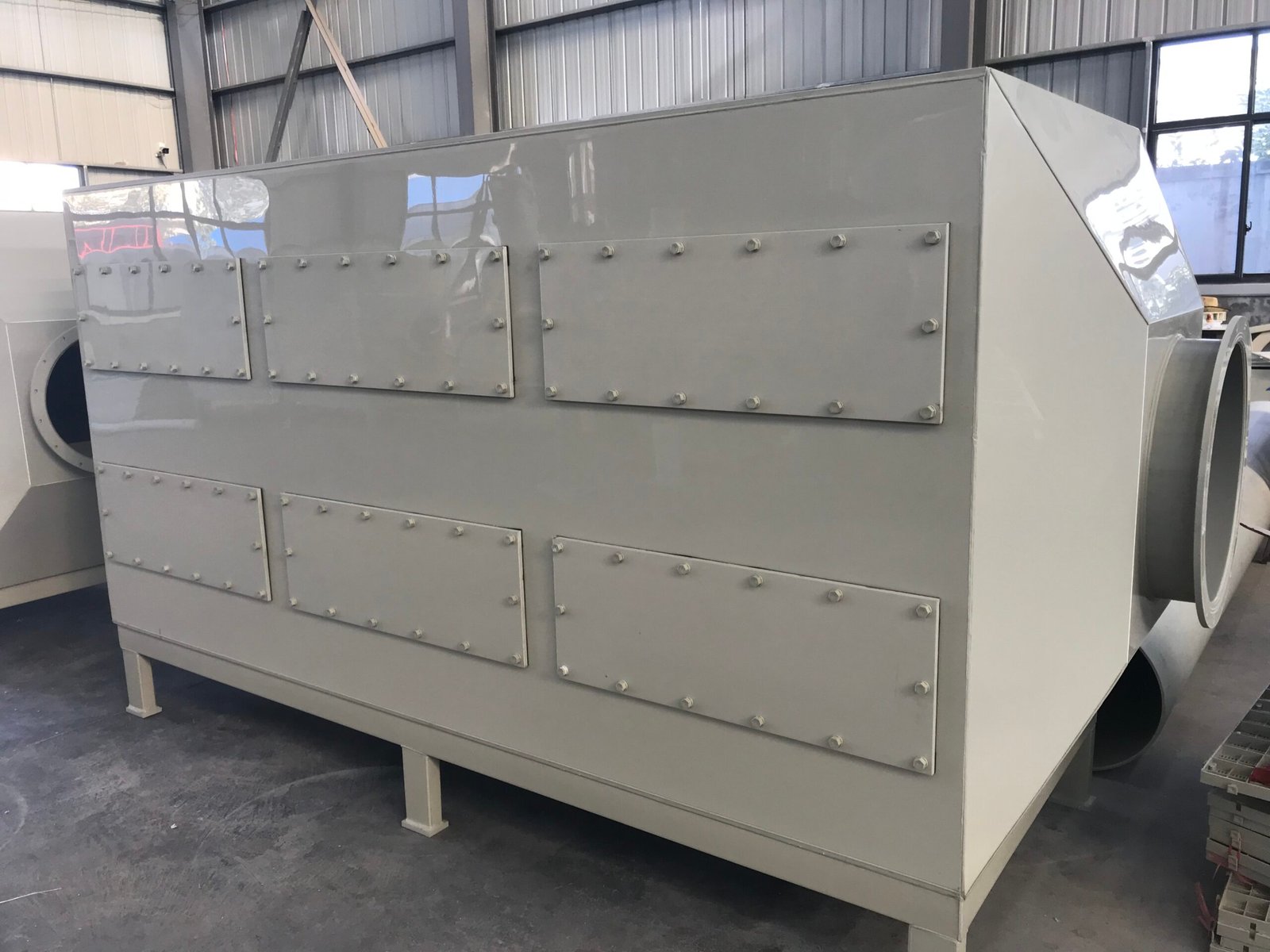

The drawer type activated carbon adsorption box is a modular fixed-bed adsorber engineered for industrial VOC capture and odor control. Its defining feature is the side-access carbon tray design: each adsorbent layer sits in an individual drawer that pulls out horizontally, allowing spent carbon to be replaced without shutting down the exhaust system or entering the contaminated chamber.
Built from corrosion-resistant PP or PPH, the unit handles acidic, alkaline, and humid exhaust streams that would rapidly degrade carbon steel housings. The number of drawers is configurable to match site airflow and footprint constraints, making it suitable for both compact workshop vents and larger process lines.
Key Features
| Side-Pull Drawer Trays | Tool-free carbon change-out from the service side; no need to stop the fan or open the contaminated front chamber. |
| PP / PPH Construction | Excellent chemical resistance against acidic, alkaline, and solvent-laden gases; extended service life in corrosive environments. |
| Configurable Drawer Count | Drawer quantity and layer thickness are tailored to target pollutant load and available floor space. |
| Low Pressure Drop | Optimized bed depth and open tray structure keep fan energy consumption within a controlled range. |
| Modular Expansion | Multiple units can be arranged in parallel or series to scale treatment capacity. |
| Accessible Inspection | Each drawer can be inspected individually for saturation monitoring and maintenance planning. |
Technical Specifications
| Body Material | PP / PPH (optional: SS304 / SS316L lining) |
| Drawer Count | Customizable (e.g., 4 / 8 / 12 / 16 drawers) |
| Single Drawer Carbon Load | [Customizable] kg (per tray, subject to design) |
| Airflow Capacity | [Customizable] Nm³/h (per unit) |
| Carbon Layer Thickness | [Customizable] mm (per drawer) |
| Applicable Pollutants | VOCs, H₂S, NH₃, mercaptans, and other odor compounds |
| Operating Temperature | ≤ [Customizable] °C |
| Pressure Drop | ≤ [Customizable] Pa (design dependent) |
| Dimensions | Customized to site layout |
Working Principle
Contaminated gas enters the box and passes horizontally through the activated carbon layers housed in the drawers. Pollutant molecules (VOCs, odor compounds) are captured by physical adsorption on the porous carbon surface, and cleaned gas exits the outlet side.
When a drawer’s carbon approaches saturation, the operator pulls that specific tray out from the service side and replaces it with fresh granular or pelletized activated carbon. Because each drawer is independent, the rest of the unit continues operating during maintenance—minimizing downtime for continuous processes.
Applications
- Chemical and pharmaceutical process vents
- Wastewater treatment and pumping station odor control
- Food processing and rendering facilities
- Printing, coating, and adhesive curing exhaust (non-spray-booth segments)
- Electronics and semiconductor cleanroom exhaust pretreatment
- Laboratory and small-batch solvent vapor control
Why Choose Yuanfang EP?
Yuanfang Environmental Protection (YFEP) designs and fabricates corrosion-resistant air pollution control equipment for industrial clients worldwide. Our drawer type activated carbon adsorption boxes are built to project-specific pollutant profiles, with PP/PPH fabrication, third-party material verification. With hundreds of delivered gas treatment installations, we provide documented compliance performance and responsive after-sales service.
Payment, Delivery & After-Sales
Payment: T/T and L/C accepted; terms confirmed per contract.
Delivery: Manufactured to order; lead time quoted after technical clarification.
After-Sales: Installation guidance, commissioning support, and spare-part supply. Drawings and operation manuals provided with shipment.
