Modular 16-drawer activated carbon adsorber for VOC removal and industrial odor control. Custom airflow up to 50,000 m³/h. PP/stainless steel. Low pressure drop. Get a quote.
Product Overview

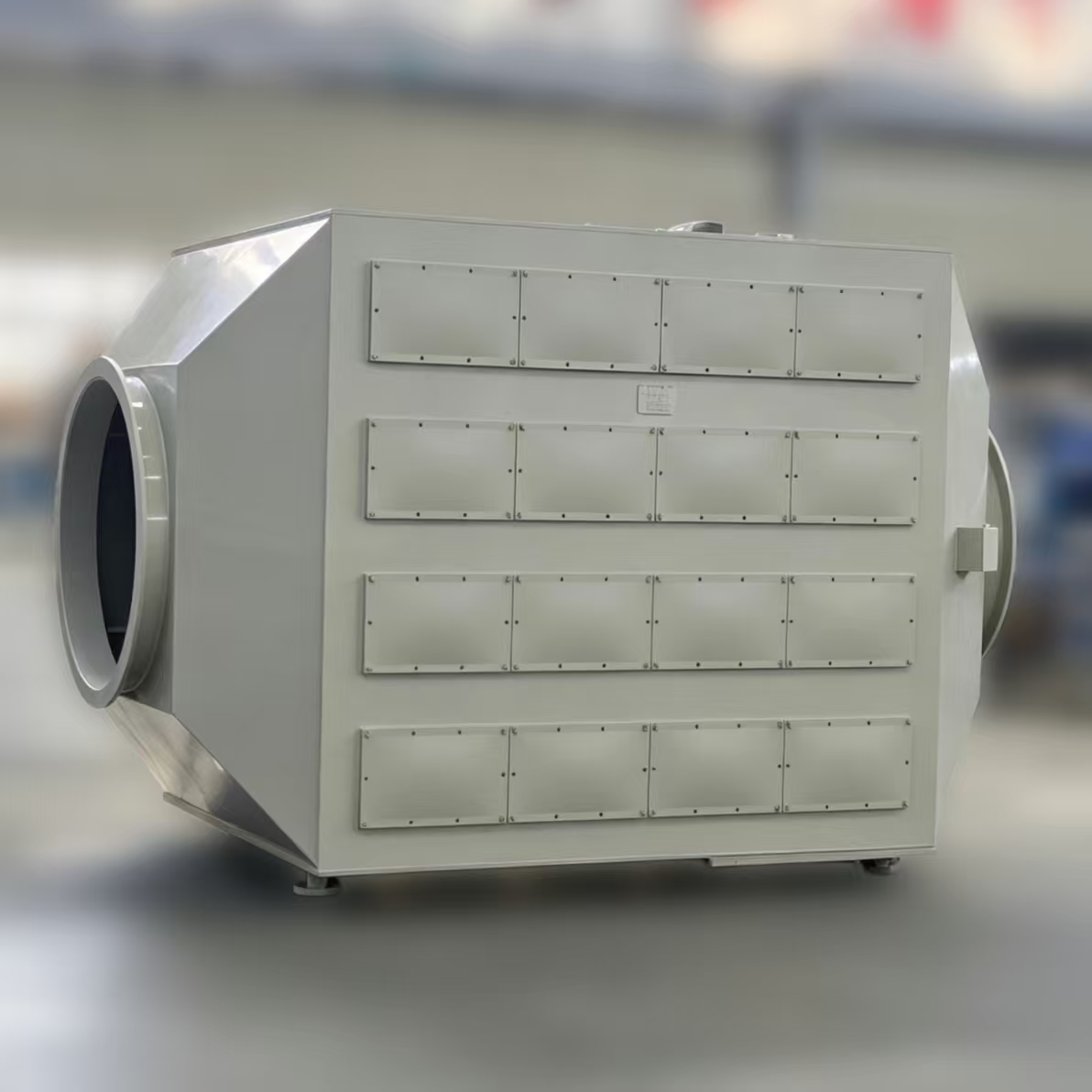

Our 16-drawer activated carbon adsorber is a high-performance, modular dry scrubber designed to remove volatile organic compounds (VOCs), odors, and chemical fumes from industrial exhaust streams. With 16 independent carbon drawers, this system offers superior airflow distribution, easier maintenance, and longer carbon service life compared to traditional single-bed adsorbers.
Ideal for chemical plants, pharmaceutical manufacturing, coating lines, wastewater treatment, and food processing facilities.
Key Features
| Feature | Benefit |
|---|---|
| 16 independent carbon drawers | Easy inspection, carbon change-out without heavy lifting |
| Customizable airflow | Designed from 1,000 to 50,000+ m³/h |
| Corrosion-resistant construction | PP (polypropylene) or stainless steel options for harsh environments |
| Low pressure drop design | Energy-efficient operation, lower fan power cost |
| Modular drawer system | One drawer can be serviced while others remain operational |
| Easy access doors | Full front access for quick media checks |
| Custom sizes | Fits your space and site constraints |
Technical Specifications
| Parameter | Details |
|---|---|
| Number of drawers | 16 (customizable) |
| Carbon media type | Granular activated carbon (GAC) / impregnated carbon / customer-specified |
| Airflow capacity | 1,000 – 50,000+ m³/h (custom) |
| Material of construction | PP (standard), stainless steel 304/316L (optional) |
| Pressure drop | ≤ 800 Pa (depending on carbon bed depth and airflow) |
| Removal efficiency | Up to 99% for targeted VOCs and odors |
| Operating temperature | ≤ 60°C (standard), higher with special design |
| Inlet/outlet duct size | Custom per airflow |
| Accessories | Differential pressure gauge, sampling ports, access doors on each drawer |
Working Principle
Contaminated air enters the adsorber and passes through 16 independent carbon drawers. Each drawer contains a bed of high-quality activated carbon. As the gas flows through the carbon media, VOCs and odorous compounds are physically adsorbed (and in some cases chemically reacted) onto the vast internal surface area of the carbon. The cleaned air exits the system, ready for discharge or recirculation.
The modular drawer design allows operators to:
-
Monitor pressure drop across individual drawers
-
Replace carbon in one drawer without shutting down the entire system
-
Inspect carbon condition through built-in sampling ports
Applications
✔ Chemical processing – solvent recovery, acid gas adsorption
✔ Pharmaceutical manufacturing – API synthesis, ethanol & acetone removal
✔ Coating & printing – paint booth exhaust, ink drying fumes
✔ Wastewater treatment – H₂S, NH₃, and organic odor control
✔ Food processing – cooking, rendering, and fermentation odors
✔ Electronics & semiconductor – cleanroom exhaust treatment
Why Choose Yuanfang EP?
| Advantage | Description |
|---|---|
| 20+ years experience | Specialized in industrial exhaust treatment since 2000 |
| Custom engineering | Every system designed for your gas composition and airflow |
| In-house manufacturing | Full quality control, shorter lead time |
| Multiple material options | PP, PPH, PVC, stainless steel 304/316L |
| Complete service | Design → fabrication → installation → maintenance |
| ISO certified | Quality management system in place |
Payment, Delivery & After-Sales
-
Minimum order quantity: 1 set
-
Packaging: Standard export wooden case / plastic wrap + steel frame
-
Delivery time: 15–30 working days after deposit (depends on size)
-
Payment terms: T/T (30% deposit, 70% before shipment) or L/C
-
After-sales support: Video guidance, on-site installation available, 12-month warranty
“Reliable dry scrubber solutions for cleaner industrial air.”
