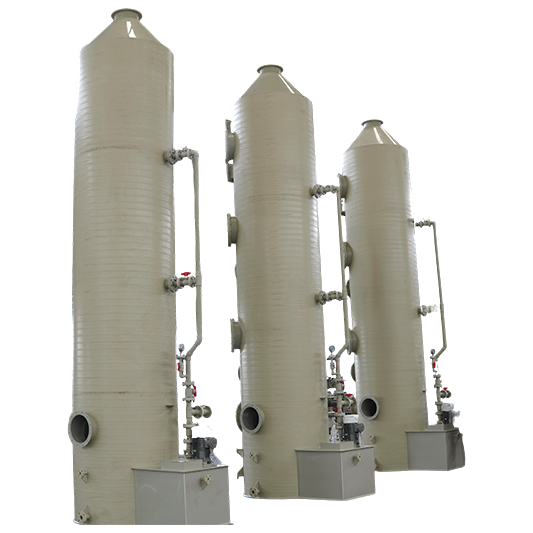

The Spray Tower Scrubber is a simple, reliable, and energy-efficient wet scrubbing system designed to remove acid gases, chemical fumes, and particulate matter from industrial exhaust streams. In this scrubber, the contaminated gas stream enters a chamber where it comes into contact with fine liquid droplets generated by multiple spray zones. The liquid is pre-formed into droplets before contacting the gas, ensuring optimal gas-liquid interaction and high collection efficiency.
Spray towers are widely used in chemical processing, pharmaceutical manufacturing, metal finishing, and waste incineration facilities due to their low maintenance, stable performance, and ability to handle fluctuating gas flows.
How It Works
In a vertical spray tower, the gas stream flows upward through the chamber and passes through multiple sets of spray nozzles. The liquid droplets absorb or chemically react with gaseous pollutants while capturing dust particles. A mist eliminator at the top removes entrained droplets and wetted particulate matter from the exiting clean gas. The scrubbing liquid and collected contaminants drain from the bottom as slurry for disposal or treatment.
Horizontal spray chambers operate on the same principle, with gas flowing horizontally through the device.
Key Features
| Feature | Description |
|---|---|
| Wide Airflow Range | Handles 100 – 30,000 CFM (customizable up to 100,000 m³/h) |
| Removal Method | Absorption / Chemisorption |
| Multiple Material Options | PP, FRP, PP+FRP, MS+FRP, SS304, SS316 |
| High Efficiency | Up to 95% removal for soluble gases and particulates |
| Accessible Design | Spray nozzles accessible from top for easy maintenance |
| Mist Elimination | Built-in entrainment separators prevent liquid carryover |
| Multi-Stage Capability | Special multi-bed packing designs accommodate different scrubbing solutions for complex gas mixtures |
Advantages
✅ Simple Operation – No complex mechanisms, easy to operate
✅ Low Maintenance – Minimal moving parts, easy access for inspection
✅ No Clogging Risk – Open design prevents blockages in wash section
✅ Dual Pollutant Removal – Handles both dust and gaseous contaminants
✅ Corrosion Resistant – Available in PP, FRP, and stainless steel for harsh environments
✅ Handles Fluctuating Flows – Stable performance despite gas flow variations
✅ Low Pressure Drop – Energy-efficient compared to venturi and packed bed scrubbers
✅ Compact Footprint – Requires minimal space
✅ Wide Application – Suitable for various harmful industrial waste gases and liquids
✅ High Reliability – Stable running with long service life
✅ Strong Abrasion Resistance – Durable construction for demanding conditions
Applications & Pollutants Treated
The spray tower scrubber is suitable for treating all kinds of harmful gases, including:
Hydrogen Sulfide (H₂S)
Sulfur Oxides (SOₓ)
Nitrogen Oxides (NOₓ)
Hydrochloric Acid (HCl)
Ammonia (NH₃)
Chlorine Gas (Cl₂)
Particulate Matter & Dust
Industries Served:
| Industry | Application |
|---|---|
| Chemical Industry | Separation of dust and aerosols |
| Pharmaceutical Industry | VOC and acid gas control |
| Metal Industry | Various types of waste gases from smelting, sintering, and melting processes |
| Waste Incineration | Flue gas treatment |
| Gasification Processes | Syngas cleaning |
| Glass Industry | Furnace exhaust treatment |
| Foundries | Dust and fume control |
| Fertilizer Production | Ammonia and acid gas removal |
| Plastics Industry | Process gas treatment |
| Food Processing | Starch recovery in potato-processing industry |
| Drying Processes | Particulate and vapor control |
Spray Tower Scrubber Material Selection Guide
We offer multiple construction materials to match your specific operating conditions:
| Material | Features | Best For |
|---|---|---|
| PP (Polypropylene) | Excellent chemical resistance, lightweight, cost-effective | General acid & alkali fume treatment |
| FRP (Fiberglass Reinforced Plastic) | High strength, corrosion resistant, lightweight | Large-scale systems, aggressive chemical environments |
| PP+FRP Composite | Combines chemical resistance with structural strength | High-corrosion, high-load applications |
| MS+FRP (Mild Steel + FRP Lining) | Structural strength with FRP corrosion barrier | Large tanks and towers requiring external strength |
| SS304 / SS316 Stainless Steel | High temperature resistance, premium finish | High-temperature exhaust, corrosive salt environments |
Why Choose Yuanfang EP?
| Advantage | Description |
|---|---|
| 20+ Years Experience | Deep expertise in industrial exhaust treatment |
| Custom Engineering | Every system designed for your specific gas composition, flow rate, and space |
| In-House Manufacturing | Full quality control from raw material to finished product |
| Multiple Material Capabilities | PP, FRP, stainless steel – one source, all options |
| Complete Service | Design → Fabrication → Installation → Maintenance |
| Proven Track Record | Hundreds of successful installations worldwide |
Spray Tower Scrubber Technical Specifications (Customizable)
| Parameter | Range / Options |
|---|---|
| Airflow Capacity | 100 – 100,000 m³/h (custom) |
| Removal Efficiency | Up to 95% (depending on pollutant) |
| Pressure Drop | Low (typically < 1,000 Pa) |
| Operating Temperature | Up to 80°C (PP/FRP); higher with stainless steel |
| Material | PP, FRP, PP+FRP, MS+FRP, SS304, SS316 |
| Spray Nozzles | Full-cone, hollow-cone, accessible from top |
| Mist Eliminator | Chevron or mesh pad type |
| Control System | Manual or PLC-automated with pH/ORP monitoring |
Get a Custom Quote of Spray Tower Scrubber
Ready to solve your industrial exhaust challenges?
📌 Please provide:
Gas composition & concentration
Airflow rate (m³/h or CFM)
Operating temperature
Particle load (if any)
Preferred material
Site constraints
Need a custom solution for your facility?
