General Main Configuration
1. Housing: Anti‑static PP Material

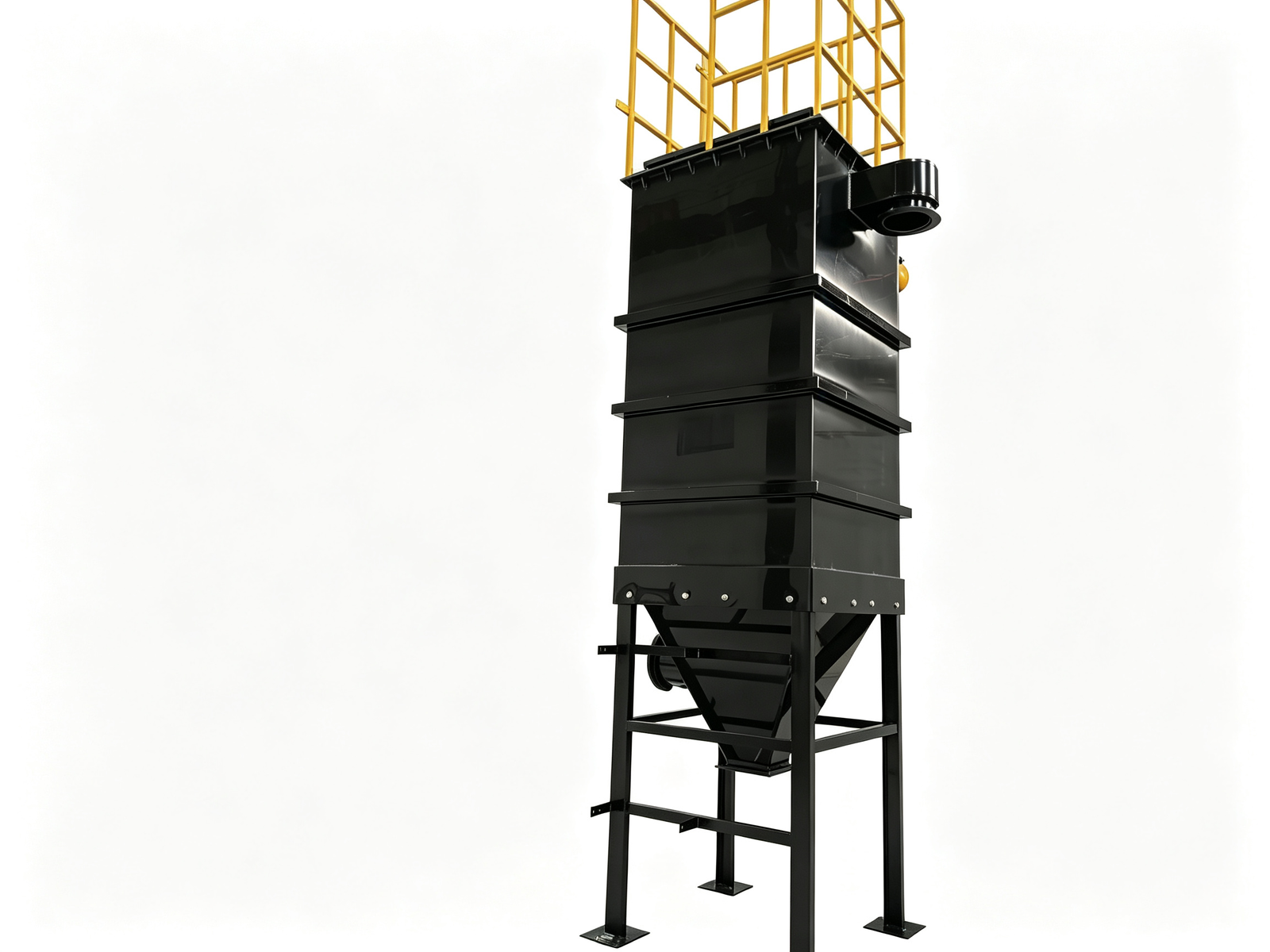

Constructed from modified anti‑static PP plates. The whole unit releases static charges to prevent dust static‑explosion hazards. It delivers good acid & alkali resistance and tolerates humid corrosive flue gas. Modular segmented cabinet enables convenient disassembly and transportation. Standard support frame and maintenance guardrail platform facilitate filter bag replacement and routine maintenance.
2. Filter Bag: PTFE Membrane Filter Bag
Surface filtration by PTFE membrane keeps dust on the bag surface to avoid bag blinding. It achieves high interception efficiency for ultra‑fine dust with low emission. Excellent ash‑cleaning performance extends service life, suitable for sticky, ultra‑fine and corrosive dust.
3. Pulse‑Jet Cleaning System
Dual‑mode automatic pulse jet cleaning (pressure‑difference / time‑based), online cleaning without shutdown. Bottom conical hopper for dust collection. It can be fitted with star‑shaped unloader or drawer‑type ash‑removal for
Optional Specification Table
| Model | Number of Filter Bags | Recommended Air Flow | Main Body Material | Filter Bag Configuration |
|---|---|---|---|---|
| PP‑12 | 12 bags | 1200‑1800m³/h | Anti‑static PP | PTFE Membrane Filter Bag |
| PP‑24 | 24 bags | 2400‑3600m³/h | Anti‑static PP | PTFE Membrane Filter Bag |
| PP‑36 | 36 bags | 3600‑5400m³/h | Anti‑static PP | PTFE Membrane Filter Bag |
| PP‑48 | 48 bags | 4800‑7200m³/h | Anti‑static PP | PTFE Membrane Filter Bag |
| PP‑64 | 64 bags | 6400‑9600m³/h | Anti‑static PP | PTFE Membrane Filter Bag |
| PP‑80 | 80 bags | 8000‑12000m³/h | Anti‑static PP | PTFE Membrane Filter Bag |
Air flow can be customized according to working conditions and dust concentration. Optional accessories: star‑shaped unloader, drawer ash collector, differential pressure gauge, explosion‑proof components, variable‑frequency fan.
Product Advantages
- Anti‑static & Explosion‑proof Safety: Full anti‑static PP construction eliminates static accumulation for flammable dust environments.
- Superior Acid & Alkali Corrosion Resistance: Longer service life than carbon steel / stainless steel dust collectors under acidic and corrosive dust conditions.
- PTFE Membrane Filter Bags: Excellent performance on fine dust, low risk of bag clogging, stable operating resistance.

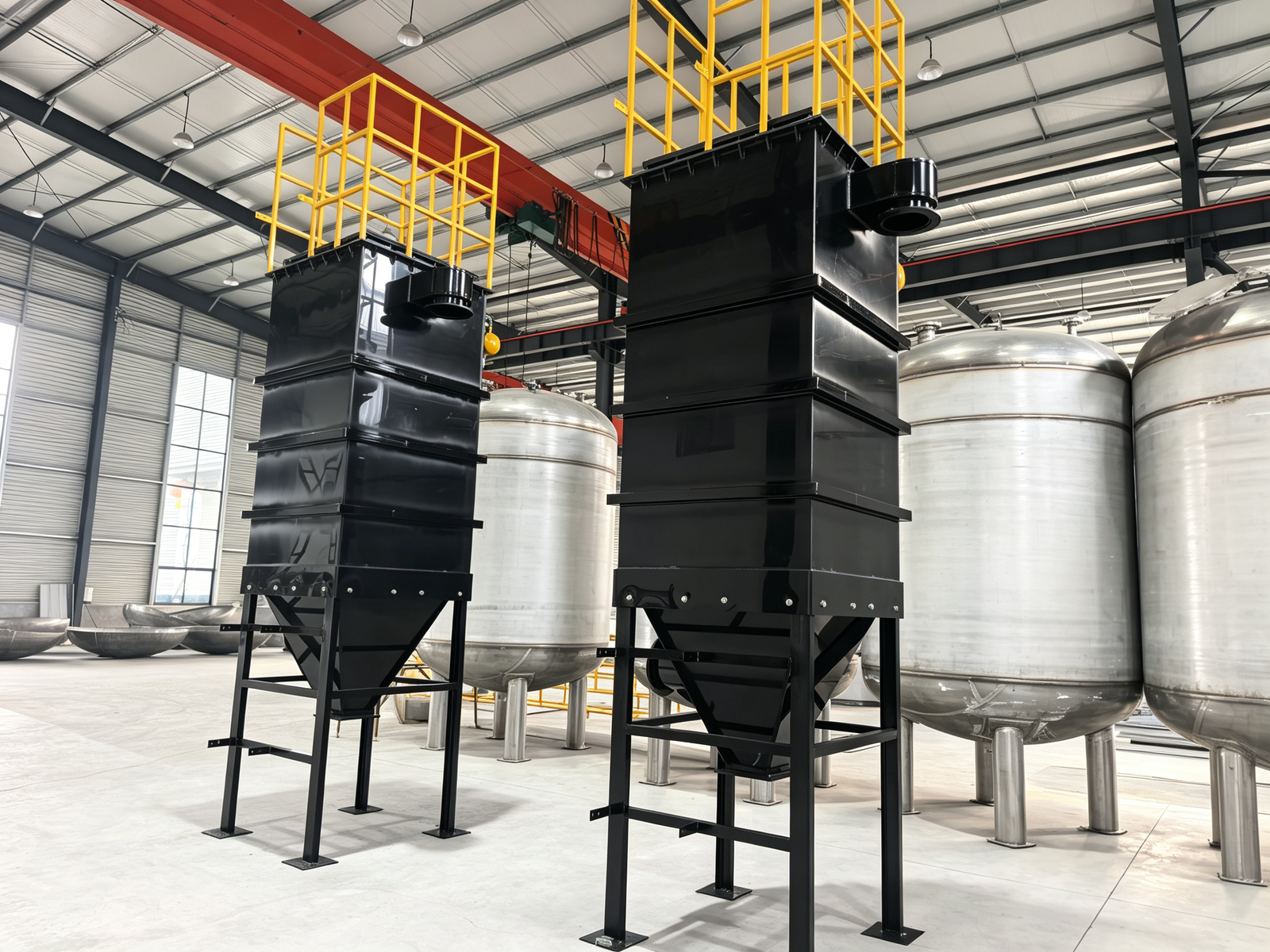

- Modular Split Structure: Easy for transport and hoisting. Built‑in maintenance guardrail for simple filter bag replacement.
- Automatic Pulse‑jet Cleaning: Supports 24‑hour continuous operation and reduces manual intervention.
- Multiple Sizes & Customization: Covers small‑volume to large‑capacity units; non‑standard dimensions are available.
Applicable Industries
Chemical powder, lithium‑battery materials, pharmaceutical intermediates, pigments & dyes, non‑metallic mineral powder, plastic granulating & crushing, hazardous waste treatment, screening and crushing of corrosive materials and other scenarios producing corrosive and flammable fine dust.
