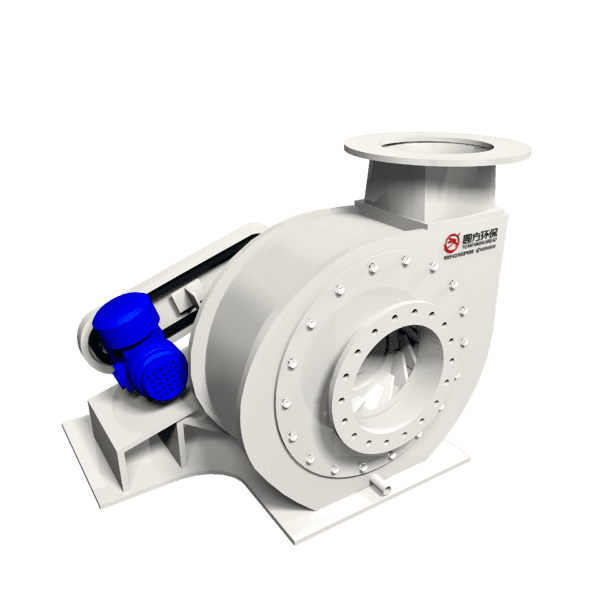

Anticorrosive centrifugal fans, with simple aspiration under low and medium pressures, manufactured on request using polypropylene or other plastic materials depending on the application. Designed for the extraction of corrosive gases.
Feature:
1.The fan housing is made of polyethylene (PE) plastic, reversible and rotable discharge position by 45° increment for option. All fan is with 304 stainless steel mounting bolts and nuts.
2.Backward curved impeller is made of polypropylene (PP) plastic after strict dynamic balance.
3.100% copper wire motor, IP55, class F,single phase 220V/50Hz/60Hz, three phase 380V/50Hz/60Hz.
Application
Polypropylene Centrifugal Fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum temperature of 60°.
Suitable for applications where the extraction of corrosive fumes and gas: sulphuric acid, sulphurous acid,nitric acid, hydrofluoric acid, hydrochloric acid, ammonia, soda,potassium hydroxide, methanol, propane, formol,benzene,formaldehyde.
Suitable for ventilation in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory and electronic workshop
